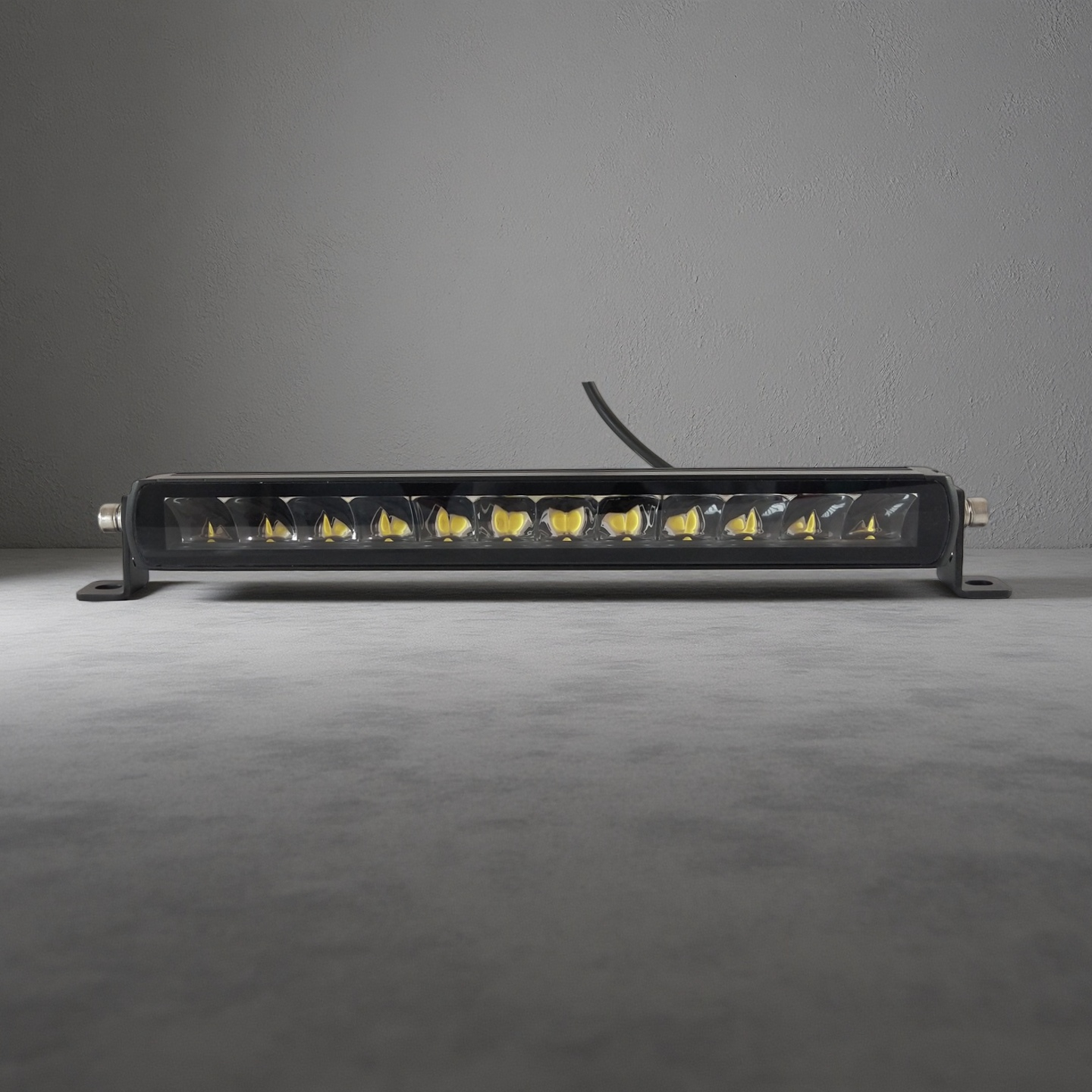

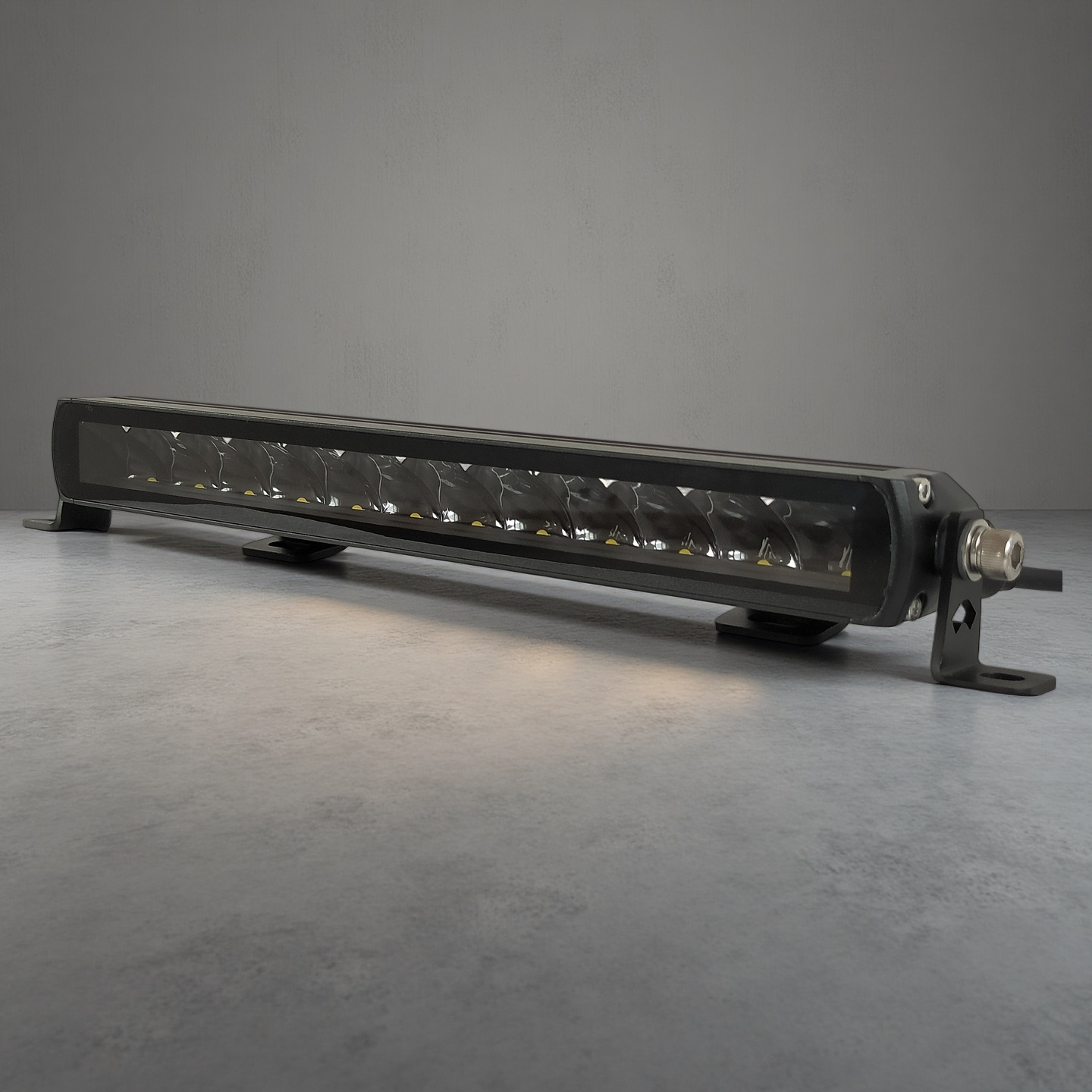

Back Stage Series 20 inch Slim Straight Spot Beam LED Light Bar with Yellow Lens
$160.00
In stock
SAEC 99-20 light bar,20″,100W,yellow lens
Share:
Slim Straight Profile with Dedicated Yellow Lens
20 inch yellow lens LED light bar from the Back Stage Series features a slim, straight low-profile housing. Equipped with a dedicated yellow lens, it forms a clean linear silhouette. The yellow lens effectively cuts through fog, dust and heavy haze for better visibility in poor weather.
High-Performance Concentrated Spot Beam
This 20 inch yellow lens LED light bar uses concentrated spot beam optics to focus its 100W output and 5920 raw lumens into long-range illumination. Its yellow lens helps cut through fog, dust and haze, while this 20 inch spot beam light bar lights distant terrain during night off-road driving.
Heavy-Duty Structure with Complete Certifications & IP68

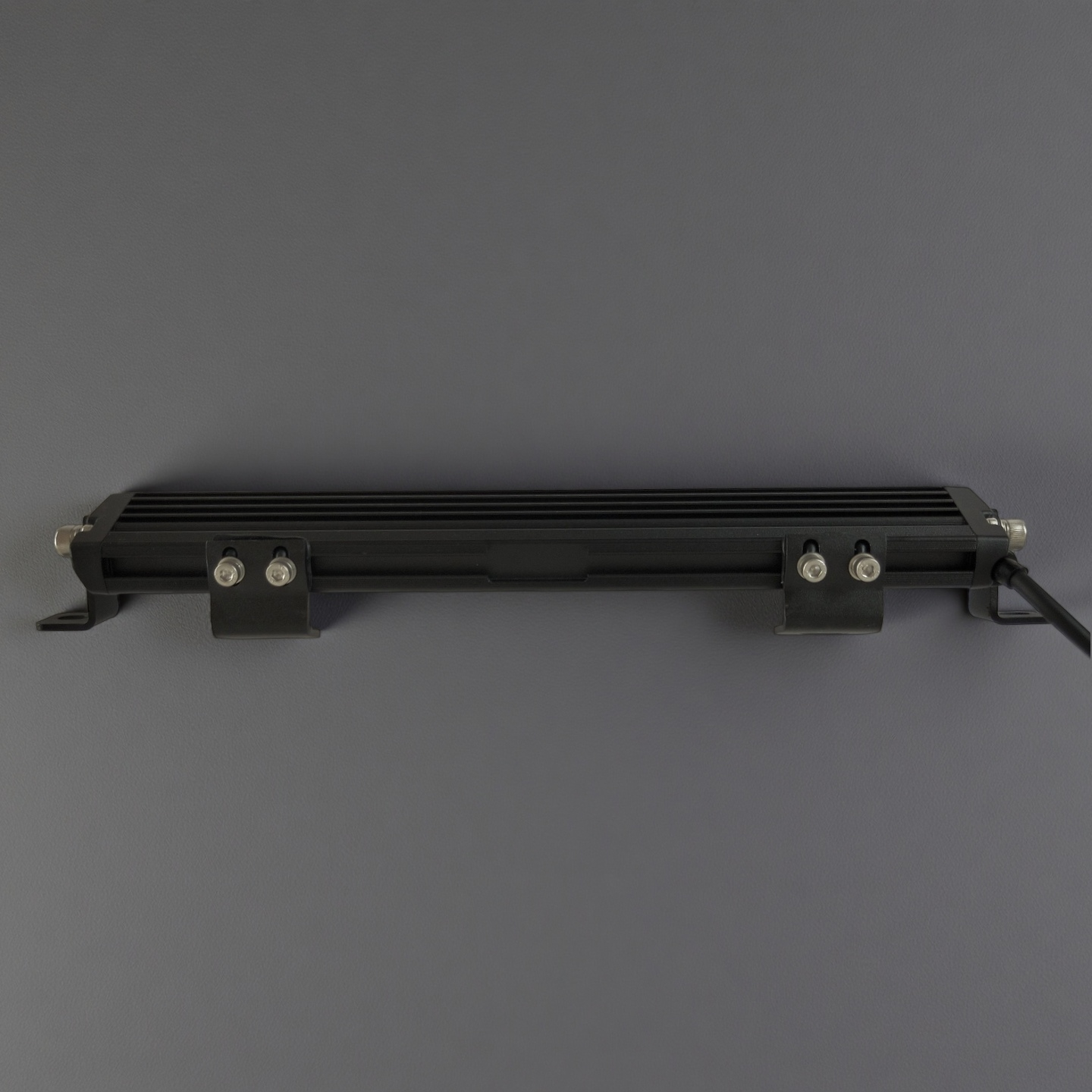

Built with sturdy aluminum housing and stainless steel mounting brackets for vibration resistance. It holds CE, ECE R112, R10 certifications and IP68 waterproof rating, defending against dust, water and rough terrain impacts.
Tech Specs
General
Alternate names
Back Stage 20"
Size

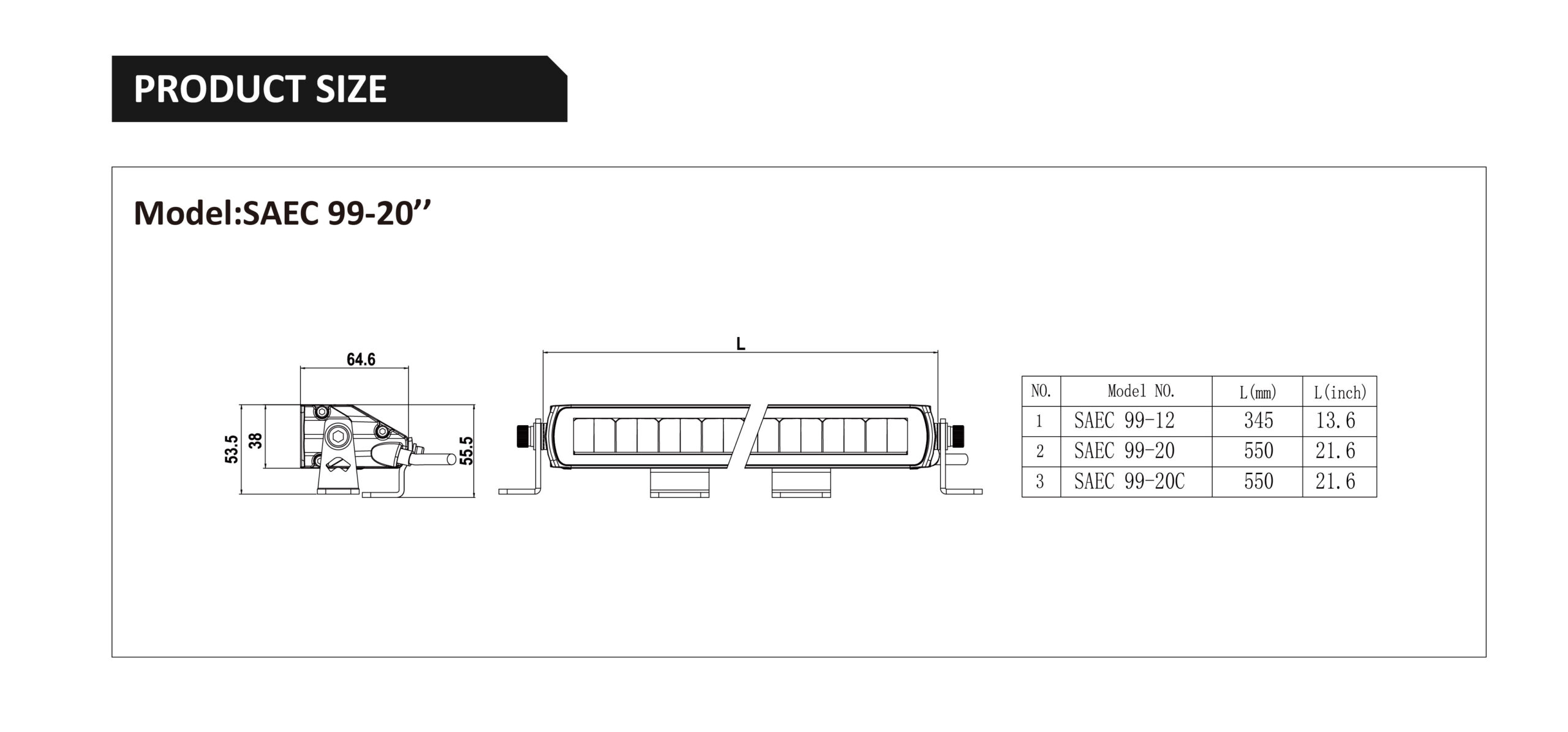

550*38*65 mm (20 inch)
Beam Type
Spot
LEDS
20*5W
Power
100W
AMP Draw(12-24V)
7.50A/3.33A
Raw Lumens
5920
Beam Distance
469
Peak Beam Intensity(CD)
219792
Voltage
9-36V
Housing Material
Aluminum
Bracket Material
Stainless Steel

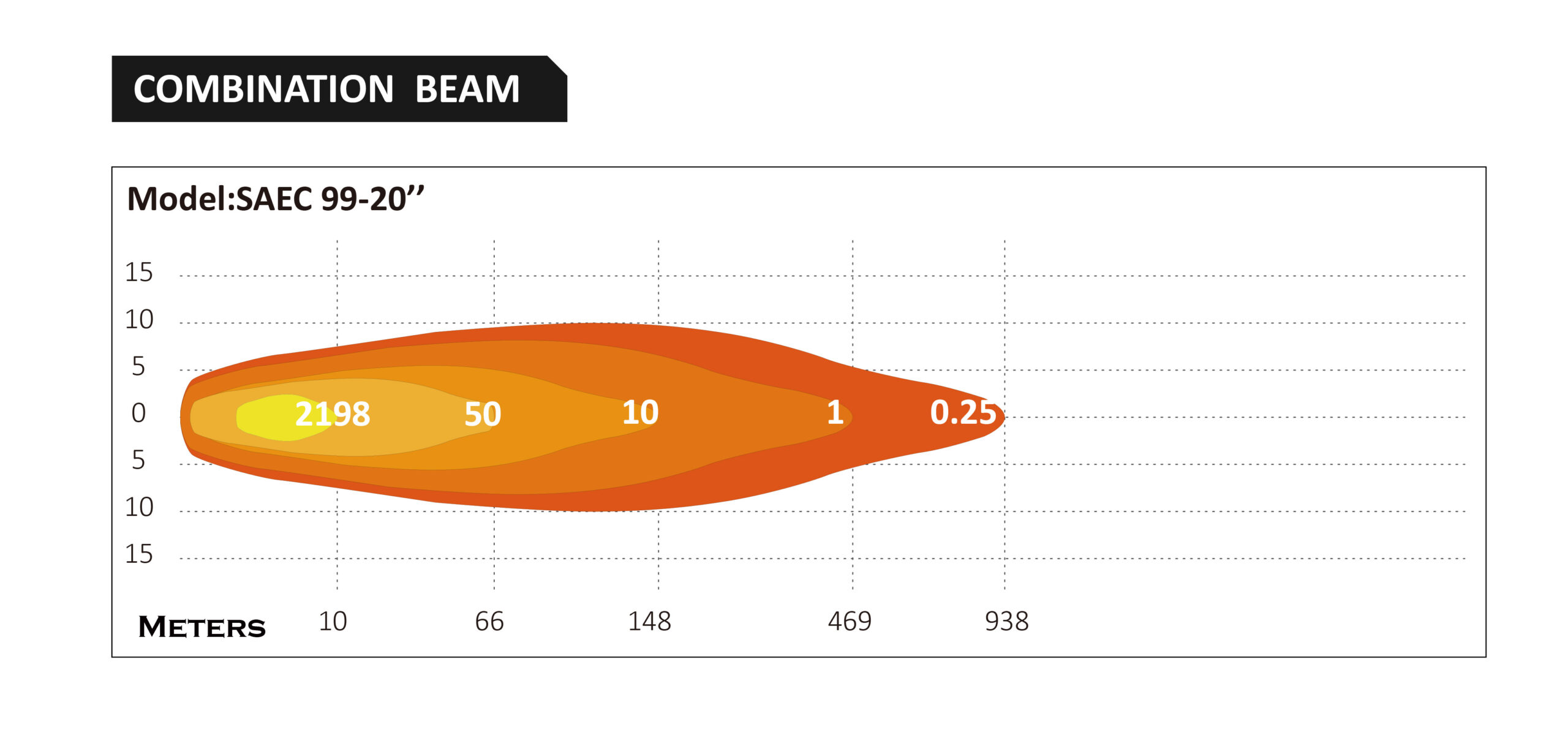

PHOTOMETRIC DATA
10m
2197 lx
50m
87.9 lx
100m
21.98 lx
200m
5.49 lx
400m
1.37 lx
469m
1lx
