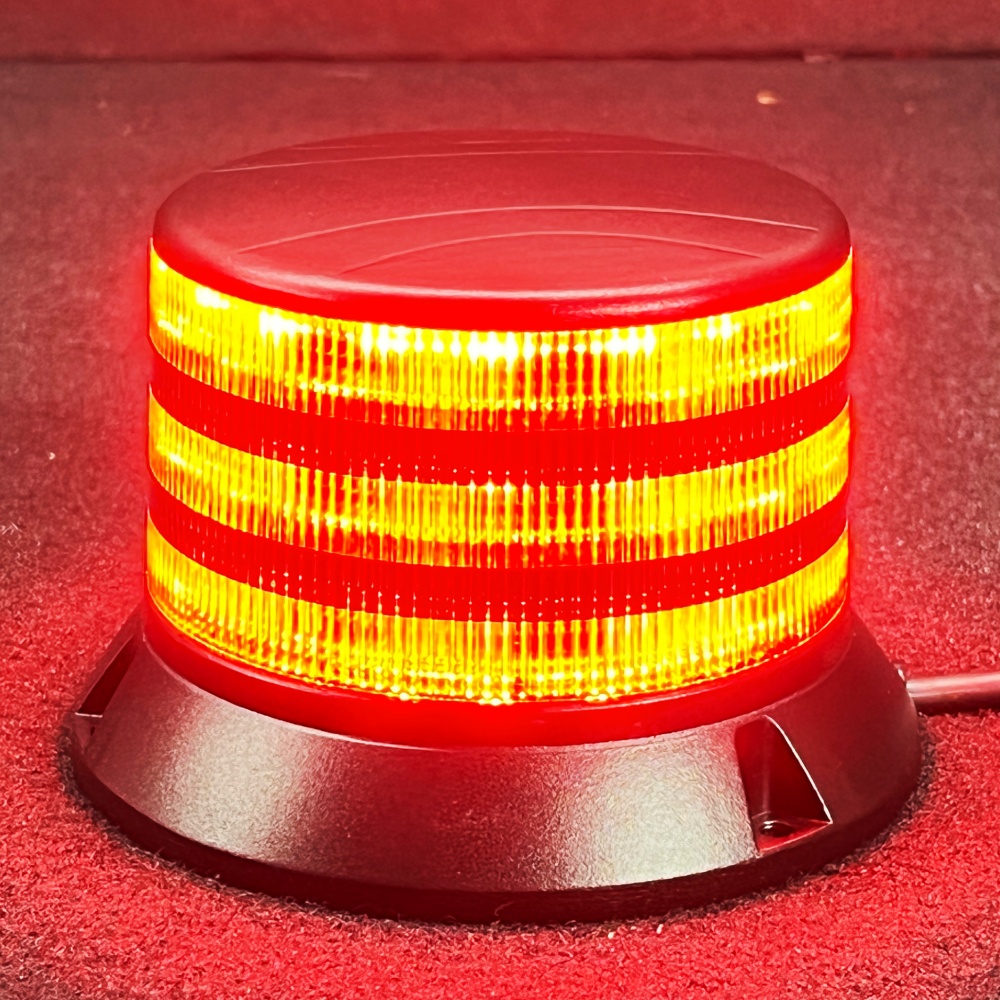

SAEC 10-7 Red

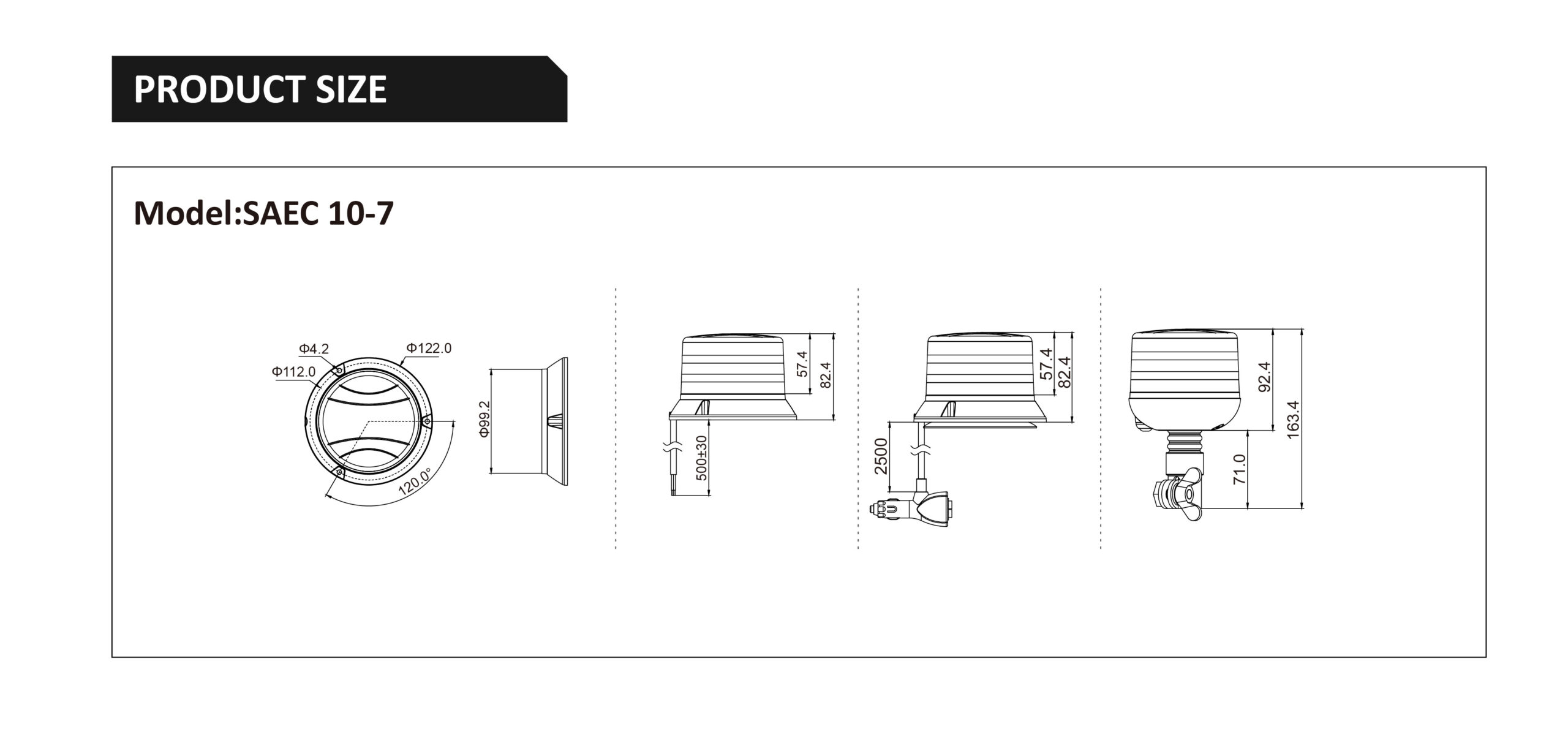

Size:122*82.4 mm
Color:Red
LEDS:48*1W
Peak Power:42W
IP Rating:IP67
Operating Temperature:-40-+65
Approvals:ECE R65 Class 2,SAE J845 Class 1,ECE R10,CISPR 25 Class 3

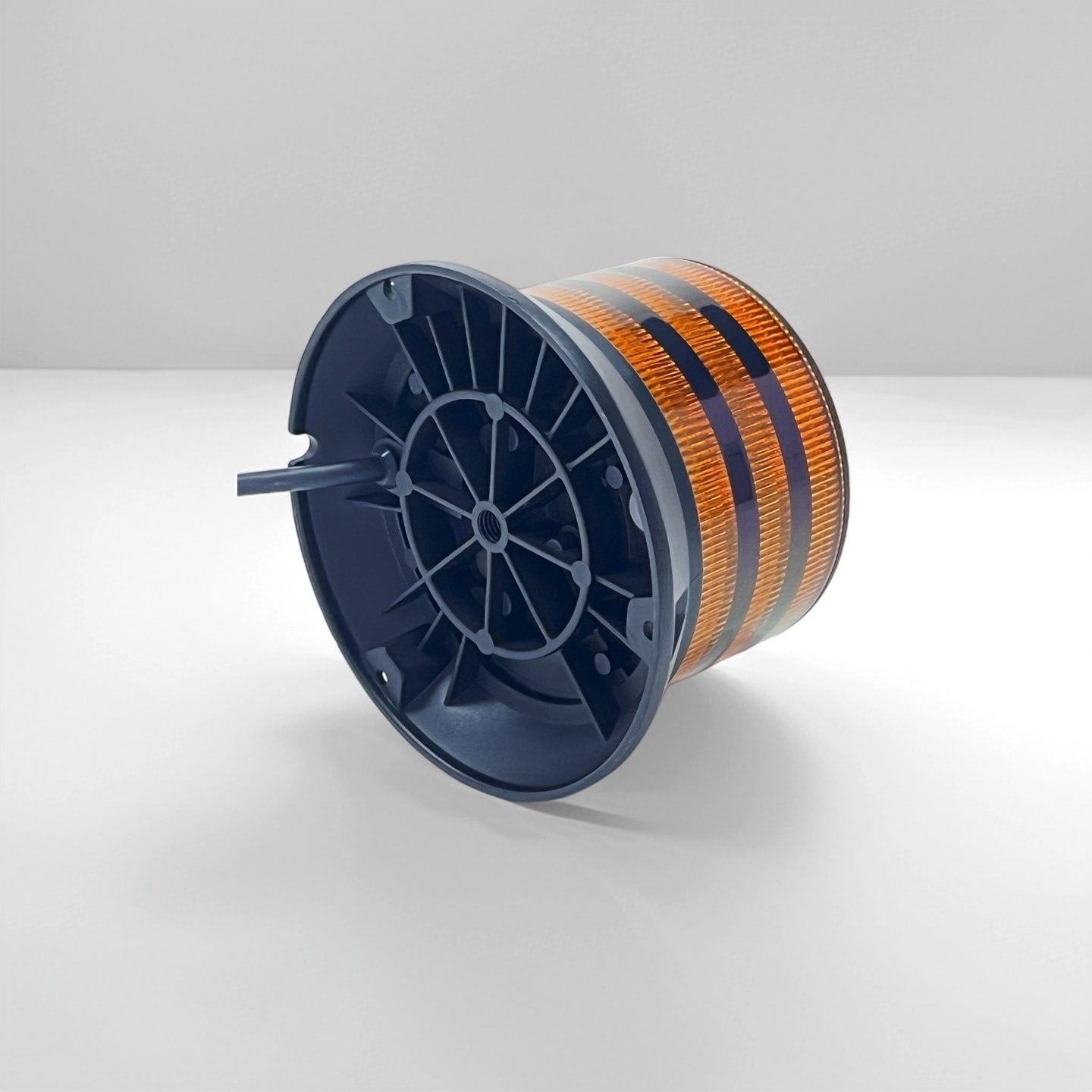

Mountings:Screw/Magnet

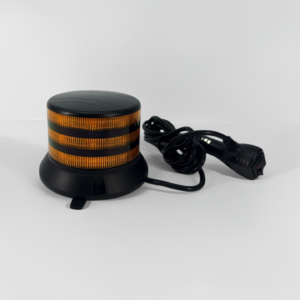

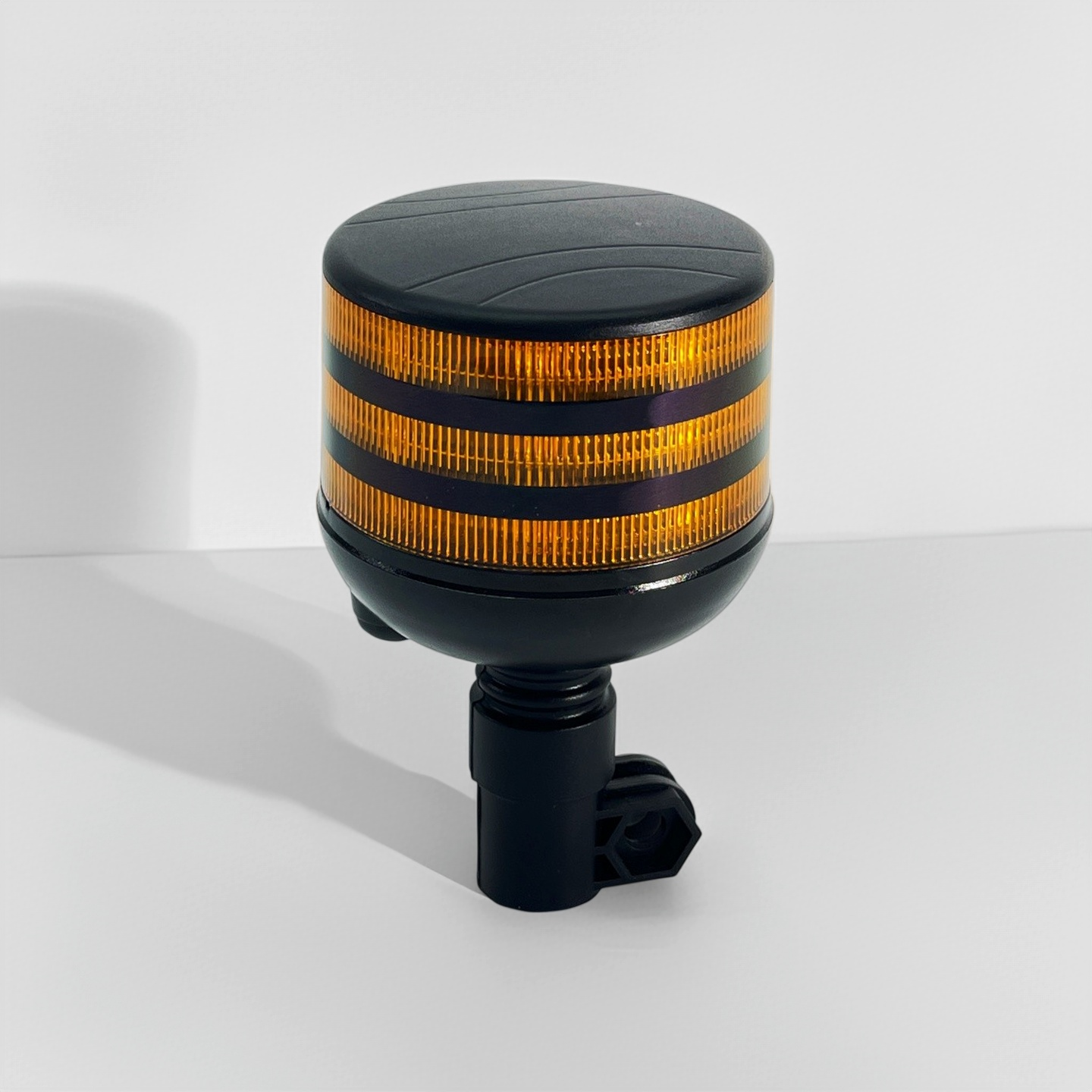

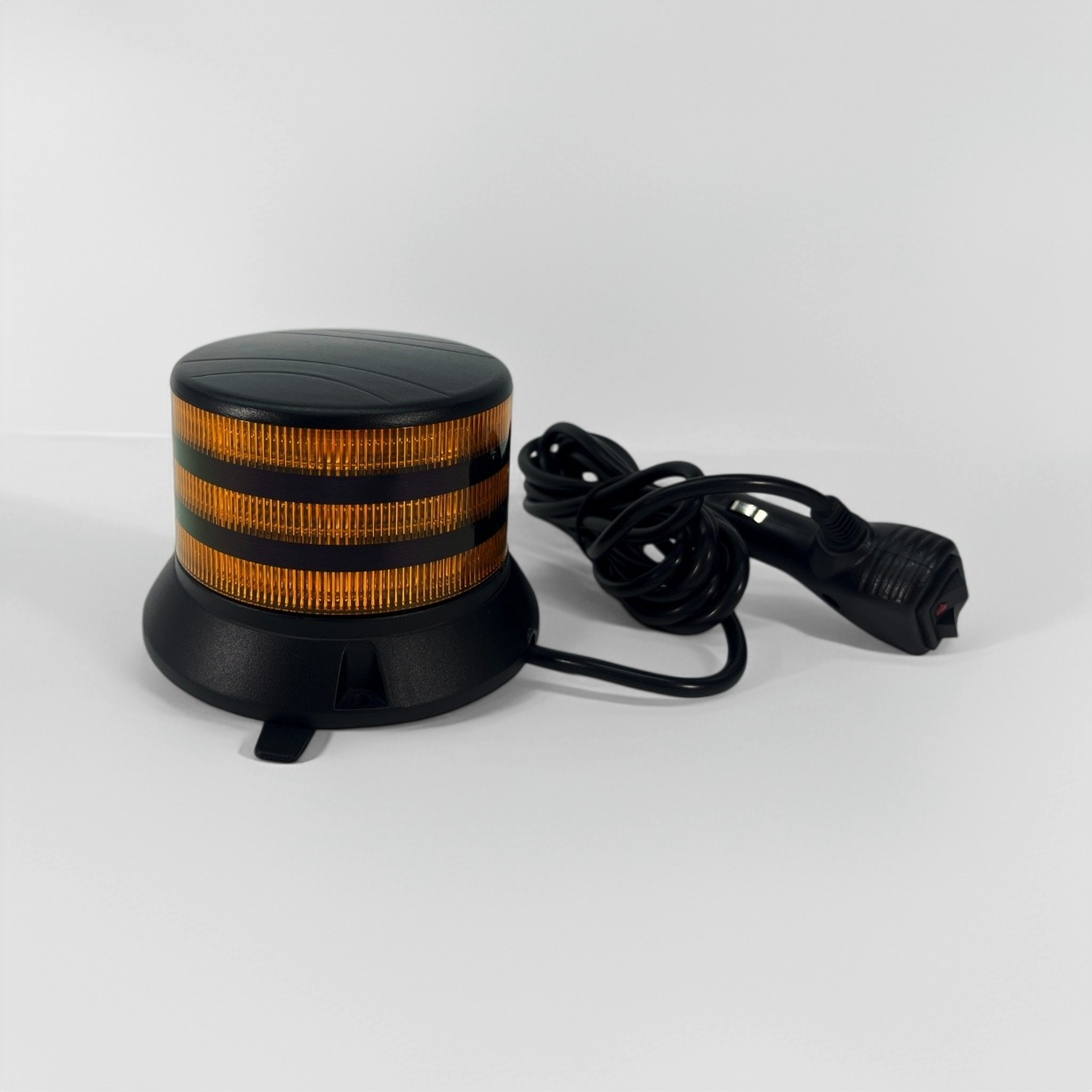

Wires:500 mm cable/2500 mm cable+plug/DIN Pole
Voltage:10-30V
Housing Material:Aluminum
Bracket Material:Stainless Steel

Flash Mode
1.Single Flash,ECE R65 Class 2 (125FPM)
2.Single Flash,ECE R65 Class 1 (125FPM)
3.Single Flash(75FPM)
4.Double Flash(125FPM)
5.Quadruple Flash(125FPM)
6.Strobe(600FPM)
7.Clockwise Rotating
8.Counterclockwise Rotating
9.Alternating Single Flash in half
10.Combination Single/Double Flash
11.Cruise(20%)
